Meltio Robot Cell
Turn-key large format AM

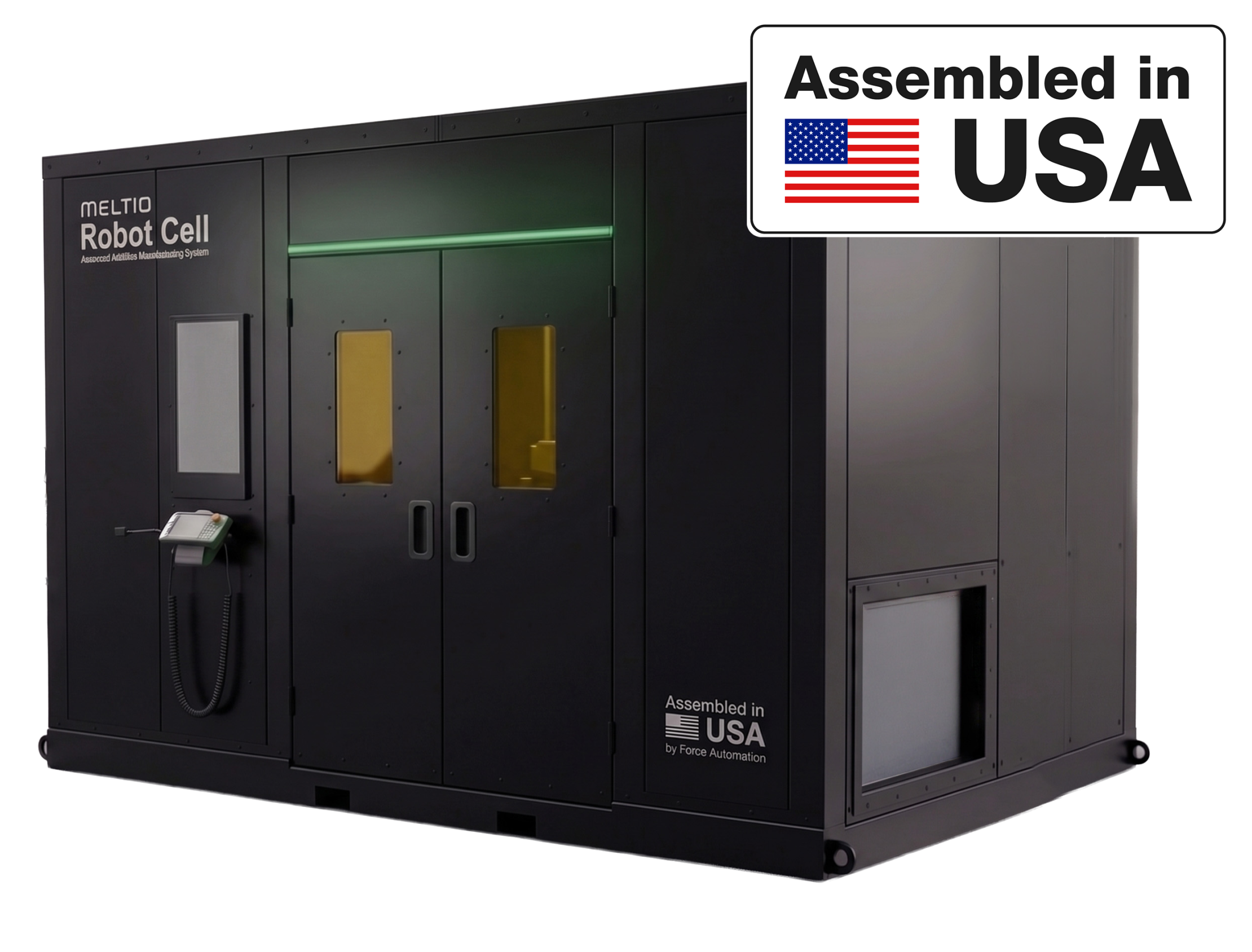

Advanced Additive Manufacturing Robotic System
An affordable turn-key solution for the Meltio Engine Robot Integration. It is designed to provide industries with a secure and efficient solution for manufacturing metal 3D printed parts.
The Meltio Engine Robot Cell is the most versatile & capable solution for 3D printing, repair, cladding and feature addition.
Technical specifications
| CLASS 1 Laser Product. | |
| Meltio Space 1 (one) year subscription. | |
|
Large 3D Printing Volume with Continuous positioner axes interpolation. |
|
|
All equipment and peripherals anchored on the platform. |
|
|
Steel platform with leveling points and wiring ducts. |
| All cell controls unified on single control panel. | |
| Everything is sent integrated and tested. | |
| The final reseller/integrator focuses work on training and enabling the client to manufacture parts. | |
| Load and unload from truck with standard industrial forklift. | |
| Includes 300x400mm actively cooled build platform and buildplates. |
| Power Input: | 2 power inputs (230V & 208V three phase). Other electrical configurations may be quoted separately. |
|---|---|
| Alternative Power Input Upon Request: | 380-415V 50/60Hz (3W+N+PE) 20kw peak 7kw avg. upon request: 230V 50/60Hz (3W) |
| General dimensions: | Ducts for wiring and integration elements, allowing a clean floor. |
|---|---|
| Structural support: | Laser safe enclosure according to IEC 60825-1 and IEC 60825-4. |
| Leveling points: | Robot Cell product as Class 1, reducing the risks for the user. |
| Oxidation resistance: | Highly fire-resistant enclosure materials that do not produce toxic particles. Specifically: B-s2,d0 according to UNE EN 13501-1 |
Single three-phase connector input. | Safe environment for the end customer. |
All cell controls unified on single control panel: | European CE and laser safety regulations. UCKA in UK and UL in America to be evaluated. |
| Connected to the customer’s local network (LAN) for PC interconnectivity. | Laser safe enclosure according to IEC 60825-1 and IEC 60825-4. |
| ABB’s SafeMove to avoid collisions with enclosure. | Fully Tested. |
| Specific Quality Controls before and after integration, ensuring maximum performance at its final destination. |
| Meltio Engine Control Unit. |
| Engine and Build Platform Water Chillers. |
| External Feeders, for spool holders and drums of +100kg |
| Inert Gas Supply options: – Attachments for three 50L Argon bottles with non-return valves. – Optional Meltio Gas Regulator – Or Supplied by customer |
* All these equipment and peripherals are anchored on this platform and may not exceed from the maximum dimensions of the self-supporting platform during transport.
| Load: | 500 kg max load (Standard) |
|---|---|
| Positioner Interpolation: | ⌀ 1000 mm x 800 mm |
| No Positioner Interpolation: | 2000 x 1000 x 1000 mm Custom build platform not included No positioner movement, only robot tool orientation |
| Actively Cooled Build Platform: | Buildplate 300x400mm Buildplate 150x200mm Buildplate 120x100mm |
* The cooling bed allows control of the temperature of the prints as wells to protect the positioner, hardware that cannot be over 70ºC on periods of more than 24h.
| Updated and renewed User Interface. |
| Timeline for Sensors Analysis. |
| Custom profiles without the need of writing macros, every possibility parametrized. |
| Live 3D model based on reading TCP positions from robot. |
| HD Webcam. |
| Profiles for Meltio Materials and Meltio Space. |
| Compatible with Welding Camera. |
Meltio Engine Blue Integration kit
| Laser System: | 1.0/1.4 kW 9 x 450 nm direct diode lasers. Blue Laser (Higher absorption and power efficiency; wider range of compatible materials than IR) |
|---|---|
| Printhead: | Robot Mounted 20.5 to 23 kg |
| Printhead Size (WxDxH): | 247 x 272 x 572 mm |
| Control Unit: | Wall mounted, air-cooled 80.5 kg 600 x 300 x 800 mm. Separate wall mounted 27″ HMI |
| Cooling: | Water-cooled deposition head. Chiller lncluded |
| Print Envelope (WxDxH): | Depending on robot’s reach |
| Process Control: | Melt Pool Camera & Closed-loop wire modulation |
| Power Input: | 200/240 V 3W+PE 380/415 V 3W+N+PE |
|---|---|
| Power Consumption: | 9.2 kW peak 1.0 / 1.4 kW avg cons: 3.93 / 4.56 kW. |
| Slicer Software: | Meltio Space 1-year subscription lncluded |
|---|---|
| Feeder System: | Quad-point traction servomotor feeder, frictionless liners |
| Wire Feedstock: | Diameter: 0.8-1.2 mm / Spool Type: 8S300 External wire drum ready |
| Product Configurations: | Single or Dual Wire |
| Compatible Materials: | Stainless Steels, Carbon Steels, Tool Steels, Nickel Alloys, Titanium, Copper Alloys, Gold alloys and more |
Meltio Engine Blue Integration kit
| Laser System: | 1.0/1.4 kW 9 x 450 nm direct diode lasers. Blue Laser (Higher absorption and power efficiency; wider range of compatible materials than IR) |
|---|---|
| Printhead: | Robot Mounted 20.5 to 23 kg |
| Printhead Size (WxDxH): | 247 x 272 x 572 mm |
| Control Unit: | Wall mounted, air-cooled 80.5 kg 600 x 300 x 800 mm. Separate wall mounted 27″ HMI |
| Cooling: | Water-cooled deposition head. Chiller lncluded |
| Print Envelope (WxDxH): | Depending on robot’s reach |
| Process Control: | Melt Pool Camera & Closed-loop wire modulation |
| Power Input: | 200/240 V 3W+PE 380/415 V 3W+N+PE |
|---|---|
| Power Consumption: | 9.2 kW peak 1.0 / 1.4 kW avg cons: 3.93 / 4.56 kW. |
| Slicer Software: | Meltio Space 1-year subscription lncluded |
|---|---|
| Feeder System: | Quad-point traction servomotor feeder, frictionless liners |
| Wire Feedstock: | Diameter: 0.8-1.2 mm / Spool Type: 8S300 External wire drum ready |
| Product Configurations: | Single or Dual Wire |
| Compatible Materials: | Stainless Steels, Carbon Steels, Tool Steels, Nickel Alloys, Titanium, Copper Alloys, Gold alloys and more |
Meltio Engine IR Integration kit
| Laser System: | Infrarred Laser 1200W 6 x 976 nm direct diode lasers + fibers & colimators |
|---|---|
| Printhead: | 15.5 kg |
| Printhead Size (WxDxH): | 230 x 310 x 710 mm |
| Control Unit: | Floor Mounted (Wheeled) 125 kg with 27″ HMI 390 x 650 x 1600 (deployed screen) |
| Cooling: | Water-cooled control unit and deposition head. Chiller included |
| Print Envelope (WxDxH): | Depending on robot’s reach |
| Process Control: | Closed-loop, wire modulation |
| Power Input: | 200/240 V 3W+PE 380/415 V 3W+N+PE |
|---|---|
| Power Consumption: | 2 – 5 kW peak depending on selected options |
| Slicer Software: | Meltio Space 1-year subscription lncluded |
|---|---|
| Feeder System: | Dual traction stepper motors + External Feeder (Push-pull system), conventional wire liners |
| Wire Feedstock: |
Diameter: 0.8-1.2 mm / Spool Type: 8S300 External wire drum ready |
| Product Configurations: | Single or Dual Wire |
| Compatible Materials: | Stainless Steels, Carbon Steels, Tool Steels, Nickel Alloys, Titanium and more |
Success stories
Meltio Robot Cell applications
The best efficiency in cost without losing mechanical properties
Construction
| Size: | 250 x 765 x 45 mm |
|---|---|
|
Material: |
NicarbW |
|
Weight: |
0.6 kg |
|
Print time: |
3h 15′ |
Food Industry
| Size: | 150 x 150 x 330 mm |
|---|---|
|
Material: |
Stainless Steel 316LSi |
|
Weight: |
4.6 kg |
|
Print time: |
16h 45′ |
Mining
| Size: | 75 x 75 x 230 mm cladded |
|---|---|
|
Material: |
Stainless Steel 316LSi |
|
Weight: |
6.6 kg |
|
Print time: |
21h 16′ |
Food Industry
| Size: | 130 x 903 x 855 mm |
|---|---|
|
Material: |
Stainless Steel 316LSi |
|
Weight: |
5 kg |
|
Print time: |
28h 15′ |
Do you want to know more about printed part properties?
Customer validation & Success stories
We are using the Meltio Robot Cell to repair high-value mining equipment. By cladding wear-resistant layers onto worn shafts and crushers, we extend the life of heavy machinery by 300% compared to buying new parts.
Integration was seamless. We mounted the Meltio head onto our existing ABB robot arm, transforming a standard handling bot into a flexible metal manufacturing cell without altering our factory floor layout.
We wanted a solution that would allow us to produce large, custom parts internally — without the overhead of tooling, molds, or external delays. Meltio’s technology, combined with robotic freedom, gave us exactly that.
We’ve opened a really unique design space through 3D printing. This project has demonstrated that additive manufacturing has the potential to produce very strong, stiff structures that will be good for marine energy.
