Meltio

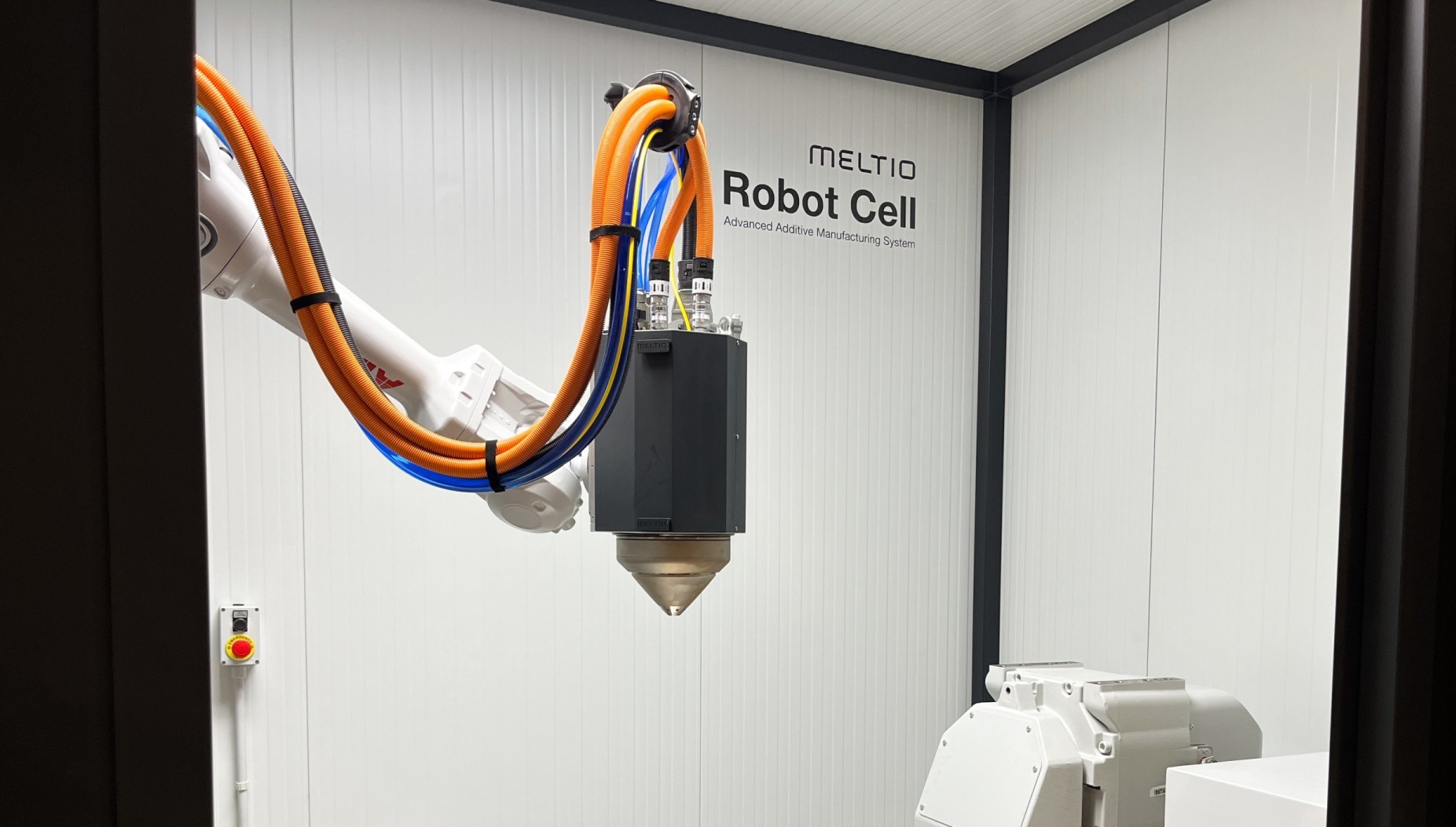

Robot Cell

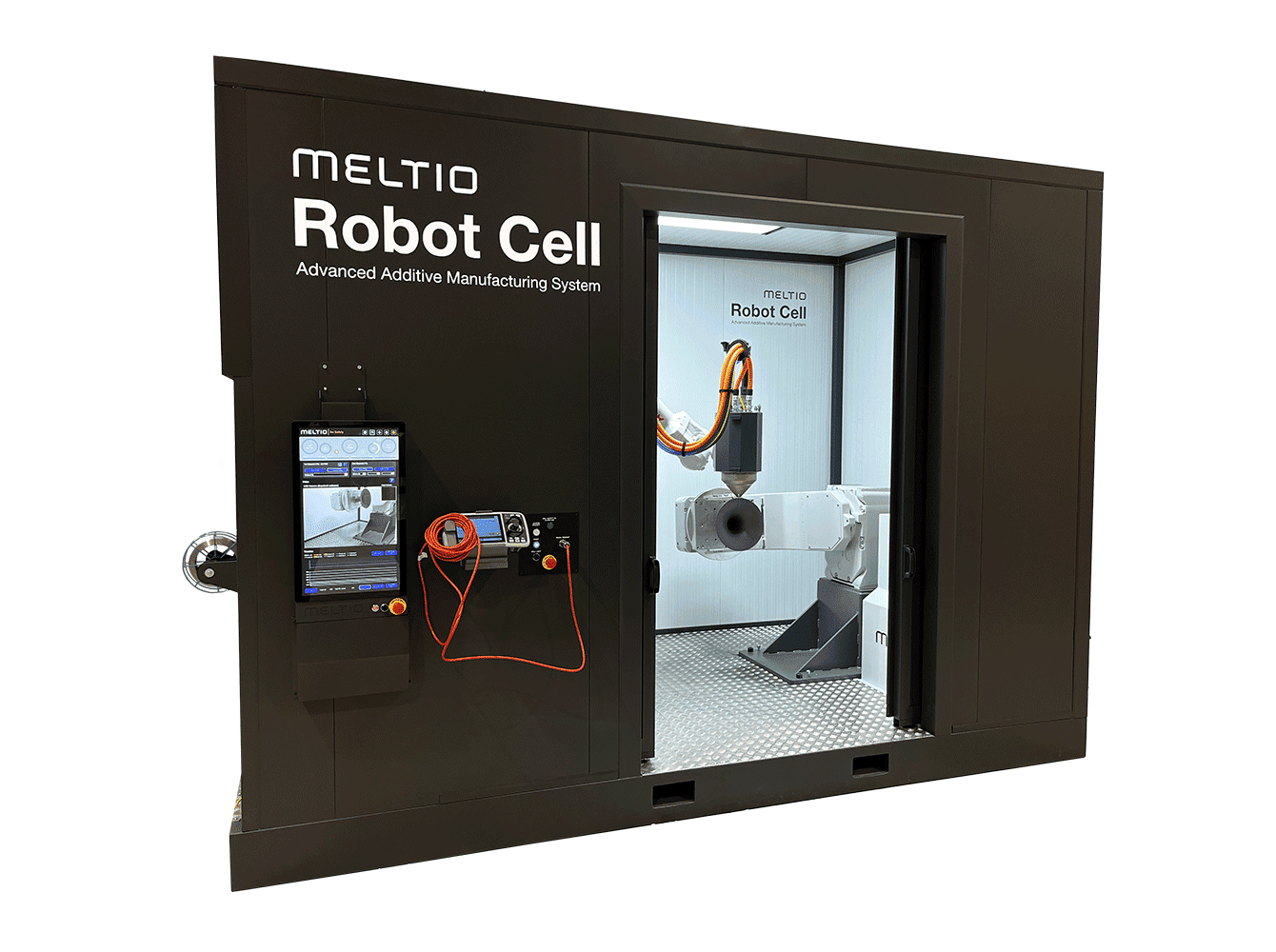

Plug-and-play Solution for Robot Integration
An affordable turn-key solution for the Meltio Engine Robot Integration. It is designed to provide industries with a secure and efficient solution for manufacturing metal 3D printed parts.
The Meltio Engine Robot Cell is the most versatile & capable solution for 3D printing, repair, cladding, and feature addition.
Efficiency Redefined
Reduce integration risk, product standardization and simplify the adoption of
technology, removing the lengthy integration process and long assembly lead times.
Plug and Play Installation
Allows the customer to receive a ready to use cell for robotic metal 3D printing.
Safe, Tested & Certified
In accordance with European CE and laser safety regulations and multiple quality controls.
Best Components
Robot and positioner on a self-supporting platform, laser safe enclosure.
Focus on Printing
On-site training for enabling the end user to be successful with Meltio and develop applications in short time.
Technical Specifications
CLASS 1 Laser Product.
Meltio Space 1 (one) year subscription.
Large 3D Printing Volume with Continuous positioner axes interpolation.
All equipment and peripherals anchored on the platform.
Standard CE certification.
Steel platform with leveling points and wiring ducts.
All cell controls unified on single control panel.
Everything is sent integrated and tested.
The final reseller/integrator focuses work on training and enabling the client to manufacture parts.
Load an unload from truck with regular size and load forklift.
Includes 300x400mm actively cooled build platform and buildplates.
Power Input:
Three phase 400V 50Hz
5 poles (3W+N+PE)
Protection up to 50A 20kw peak power consumption
Average power consumption at 15-18 A: -> 7kw
Alternative Power Input Upon Request:
Three phase 440V 60Hz 5 poles (3W + N + PE)
Three phase 230V 60Hz 3 poles (3W)
General dimensions:
4.050 x 2.300 x 3.000 mm
Self-supporting steel platform (4050 mm length x 2550 mm width).
Prepared to support the weight of the Cell and its components without deformations.
Includes leveling points.
Resistant to oxidation or protected for this purpose.
Ducts for wiring and integration elements, allowing a clean floor.
Laser safe enclosure according to IEC 60825-1 and IEC 60825-4.
Robot Cell product as Class 1 reducing the risks for the user.
Highly fire-resistant enclosure materials that do not
produce toxic particles.Specifically: B-s2,d0 according to UNE EN 13501-1
Dual Wire:
This option allows to 3D print two wire materials sequentially with very quick wire switches.
Laser Alignment System:
It allows users to calibrate Meltio’s multi-laser deposition head accurately and effortlessly prior to every print.
Meltio Engine Control Unit.
Engine and Build Platform Water Chillers.
External Feeders, for spool holders and drums of+100kg
Inert Gas Supply options:
– Attachments for three 50L Argon bottles with non-return valves.
– Optional Meltio Gas Regulator
– Or Supplied by customer
* All these equipment and peripherals are anchored on this platform and may not exceed from the maximum dimensions of the self-supporting platform during transport.
Load:
500 kg max load (Standard)
No Positioner Interpolation:
2000 x 1000 x 1000 mm
Custom build platform not included
No positioner movement, only robot tool orientation
Positioner Interpolation:
⌀ 1000 mm x 1200 mm
Actively Cooled Build Platform:
Buildplate 300x400mm
Buildplate 150x200mm
Buildplate 120x100mm
* The cooling bed allows control of the temperature of the prints as wells to protect the positioner, hardware that cannot be over 70ºC on periods of more than 24h.
Updated and renewed User Interface.
Custom profiles without the need of writing macros, every possibility parametrized.
HD Webcam.
Compatible with Welding Camera.
Timeline for Sensors Analysis.
Live 3D model based on reading TCP positions from robot.
Profiles for Meltio Materials and Meltio Space.
Key Technical Features
CLASS 1 Laser Product.
Meltio Space 1 (one) year subscription.
Large 3D Printing Volume with Continuous positioner axes interpolation.
All equipment and peripherals anchored on the platform.
Standard CE certification.
Steel platform with leveling points and wiring ducts.
All cell controls unified on single control panel.
Everything is sent integrated and tested.
The final reseller/integrator focuses work on training and enabling the client to manufacture parts.
Load an unload from truck with regular size and load forklift.
Includes 300x400mm actively cooled build platform and buildplates.
Electrical Requirements
Power Input:
Three phase 400V 50Hz
5 poles (3W+N+PE)
Protection up to 50A 20kw peak power consumption
Average power consumption at 15-18 A: -> 7kw
Alternative Power Input Upon Request:
Three phase 440V 60Hz 5 poles (3W + N + PE)
Three phase 230V 60Hz 3 poles (3W)
Structure and Enclosure
General dimensions:
4.050 x 2.300 x 3.000 mm
Self-supporting steel platform (4050 mm length x 2550 mm width).
Prepared to support the weight of the Cell and its components without deformations.
Includes leveling points.
Resistant to oxidation or protected for this purpose.
Ducts for wiring and integration elements, allowing a clean floor.
Laser safe enclosure according to IEC 60825-1 and IEC 60825-4.
Robot Cell product as Class 1 reducing the risks for the user.
Highly fire-resistant enclosure materials that do not
produce toxic particles.Specifically: B-s2,d0 according to UNE EN 13501-1
Integration and Safety
Single three-phase connector input.
All cell controls unified on single control panel:
– Cell Controls: Open doors and arm security
– Robot Controls: Motors On, Mode Selector and Emergency
Connected to the customer’s local network (LAN) for PC interconnectivity.
ABB’s SafeMove to avoid collisions with enclosure.
Safe environment for the end customer.
European CE and laser safety regulations.
UCKA in UK and UL in America to be evaluated.
Fully Tested.
Specific Quality Controls before and after integration, ensuring maximum performance at its final destination.
Supplies Area
Meltio Engine Control Unit.
Engine and Build Platform Water Chillers.
External Feeders, for spool holders and drums of+100kg
Inert Gas Supply options:
– Attachments for three 50L Argon bottles with non-return valves.
– Optional Meltio Gas Regulator
– Or Supplied by customer
Load and Build Volume
Load:
500 kg max load (Standard)
No Positioner Interpolation:
2000 x 1000 x 1000 mm
Custom build platform not included
No positioner movement, only robot tool orientation
Positioner Interpolation:
⌀ 1000 mm x 1200 mm
Actively Cooled Build Platform:
Buildplate 300x400mm
Buildplate 150x200mm
Buildplate 120x100mm
Engine Software
Updated and renewed User Interface.
Custom profiles without the need of writing macros, every possibility parametrized.
HD Webcam.
Compatible with Welding Camera.
Timeline for Sensors Analysis.
Live 3D model based on reading TCP positions from robot.
Profiles for Meltio Materials and Meltio Space.
Meltio Space Software
This toolpath generator software is specifically developed for accelerated adoption of Meltio technology, revolutionizes the field of robotic additive manufacturing.With its intuitive design, users can quickly adapt to and leverage the benefits of robotic additive manufacturing without requiring expertise in robotics or programming.
Meltio Robot Cell Applications

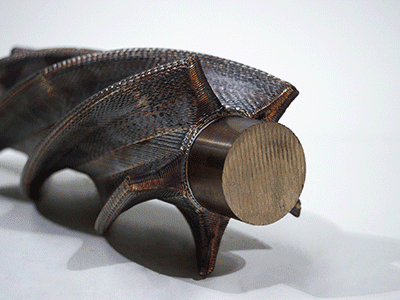

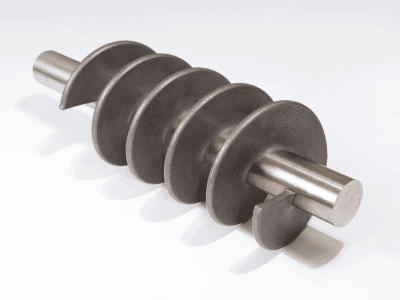

Rotary Screw Compressor
SS316L
Size:
75 x 75 x 230 mm cladded
Weight:
3 kg
Print Cost:
$ 62.83
Pipe Manifold
SS316L
Size:
205 x 360 x 473 mm
Weight:
5 kg
Print Cost:
$ 142.02
Spherical Tank
SS316L
Size:
500 Ø mm
Weight:
30 kg
Print Cost:
$ 433.07
Meltio Space Software
This toolpath generator software is specifically developed for accelerated adoption of Meltio technology, revolutionizes the field of robotic additive manufacturing.With its intuitive design, users can quickly adapt to and leverage the benefits of robotic additive manufacturing without requiring expertise in robotics or programming.
